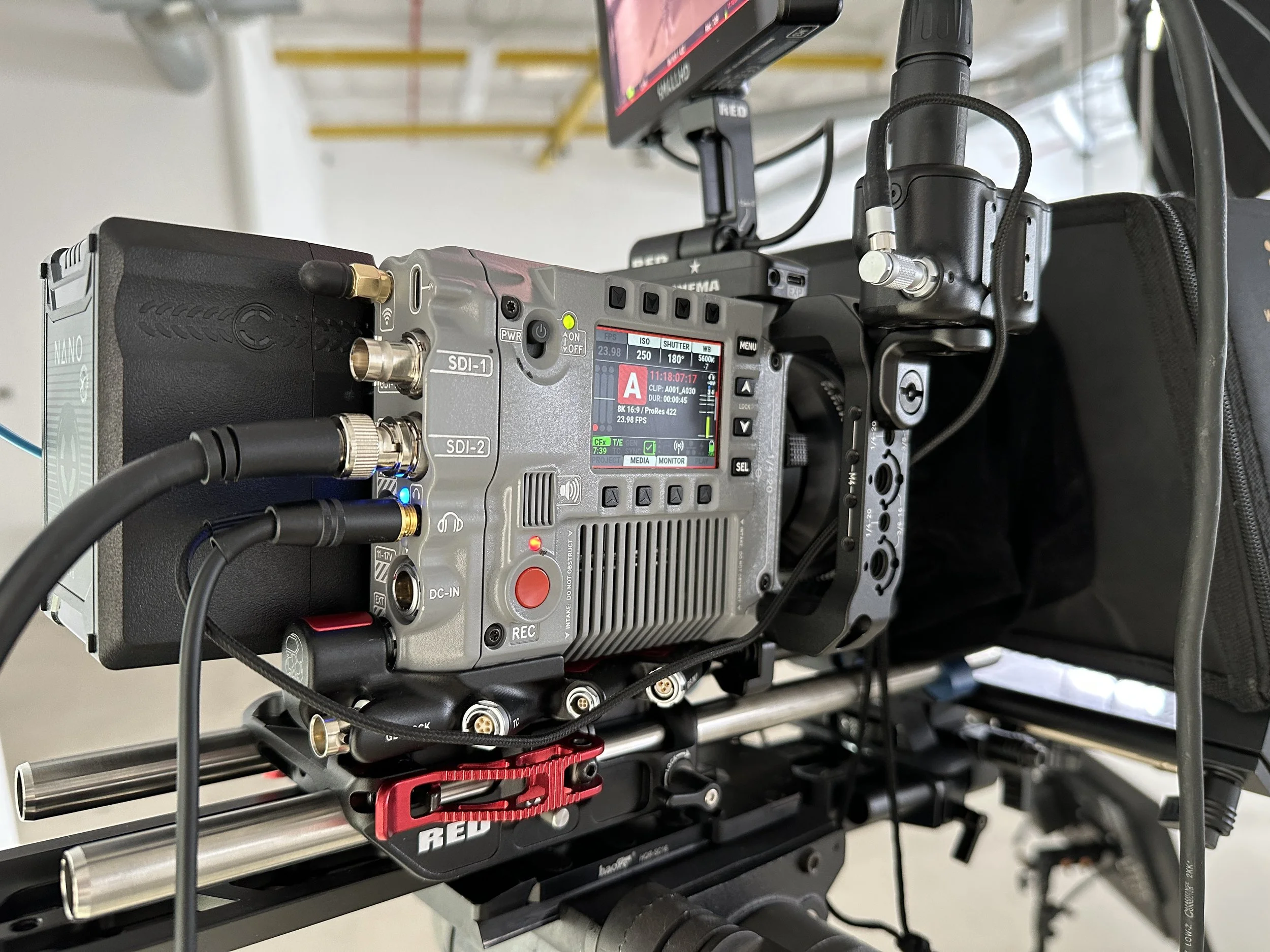

RED V-Raptor S35 RHINO

RED V-Raptor S35 Rhino Edition

Gear Specs:

V-RAPTOR

SENSOR TYPEV-RAPTOR™ 8K S35 35.4 Megapixel CMOSEFFECTIVE PIXELS8192 x 4320SENSOR SIZE26.21 mm x 13.82 mm (Diagonal: 29.63 mm)DYNAMIC RANGE16.5+ stopsMOUNT TYPEIntegrated RF mount with RF lens support
Supports Canon EF lenses via compatible Canon RF to EF mount adapters
Accepts other Canon RF mount-based lens adaptors for diverse lens choicesMAX DATA RATESUp to 800 MB/s using RED branded or other qualified CFexpress media cards[1]REDCODE® RAW MAX FRAME RATES120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456)
140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024)
160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592)
192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160)
240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728)
320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296)
480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864)BEST AVAILABLE REDCODE® SETTINGSREDCODE HQ, MQ and LQ at 8K 17:9 (8192 x 4320) up to 60 fps
REDCODE LQ at 8K 17:9 (8192 x 4320) up to 120 fps
REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 96 fps
REDCODE MQ and LQ at 6K 17:9 (6144 x 3240) up to 160 fps
REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 240 fps
REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 480 fpsREDCODE® RAW
ACQUISITION FORMATS8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1
6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1
5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1
4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1
3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1
2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1APPLE PRORESDedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT with resolutions up to 4K (4096 x 2160)
Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080)CONSTRUCTIONAluminum AlloyWEIGHT4.00 lbs (without body cap and CFexpress card)BATTERY TYPEIntegrated V-Lock battery interface optimized for Micro V-Lock Batteries[1]DC POWER INPUT11-17V via 6-pin DC-INOPERATING TEMPERATURE0°C to 40°C (32°F to 104°F)STORAGE TEMPERATURE–20°C to 50°C (–4°F to 122°F)STORAGE RELATIVE HUMIDITY0% to 85% non-condensingCOLOR MANAGEMENTImage Processing Pipeline 2 (IPP2)
Supports 33×33×33 3D LUTs
Supports import of CDLsAUDIOIntegrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
Integrated dual channel mic/line/+48V input via 5-pin Audio Port, uncompressed, 24-bit 48 kHzAUTOFOCUSContrast and Phase DetectREMOTE CONTROLWi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector
Genlock, Timecode-in, GPIO and Ctrl (RS-232) via the integrated 9-pin EXT Port
Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing remote camera control, live MJPEG preview video feed and remote media offloadMONITOR OUTPUTSIntegrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz AudioMONITOR OPTIONSDSMC3™ RED® Touch 7.0” LCD
Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing
Integrated 2.4" LCD for camera control (no preview video)RED CONTROLAccess full camera controls and live preview from iOS or Android devices
Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via USB-C
